CSI TAC Inet serial driver

Requirements:

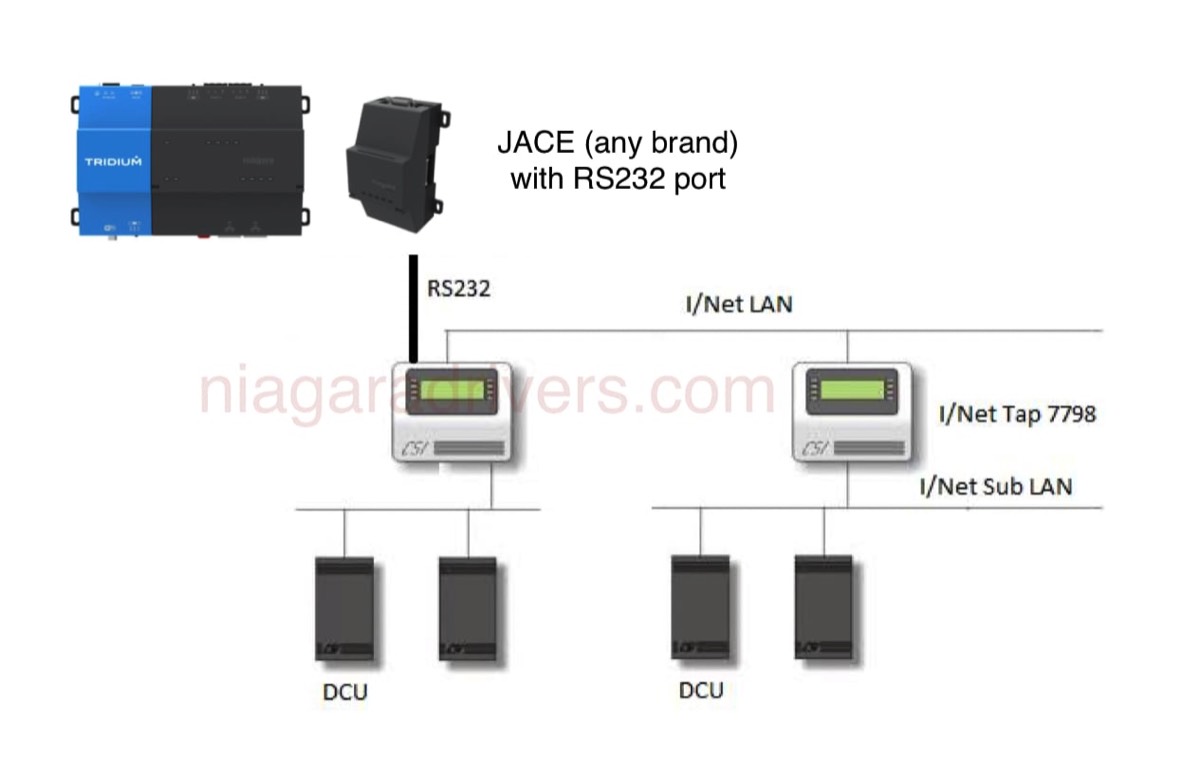

• JACE or equivalent from Honeywell, Distech, or any other OEM supplier.
• Serial communication RS232 Port. External RS232 ports can be added to a JACE and all connected devices are covered by a single unlock code (license) for the MaxLine Inet driver, unlock is for JACE not individual port/network.
• The limitation on the maximum size of an N2 Network in a single Niagara N4 station is based on the JACE resource count, and the total bandwidth of the serial connection(s). Increasing the Inet Network “Inter Message Delay” may be needed to resolve issues on large networks.

Supported devices:

• TAC I/Net 7801X
• TAC I/Inet 7798

Note : The driver can support 64 TAP addresses, with 16 DCU addresses, with 32 Point numbers, for each DCU device - as defined in I/Net.
